Supports customisation for moulds of any size.

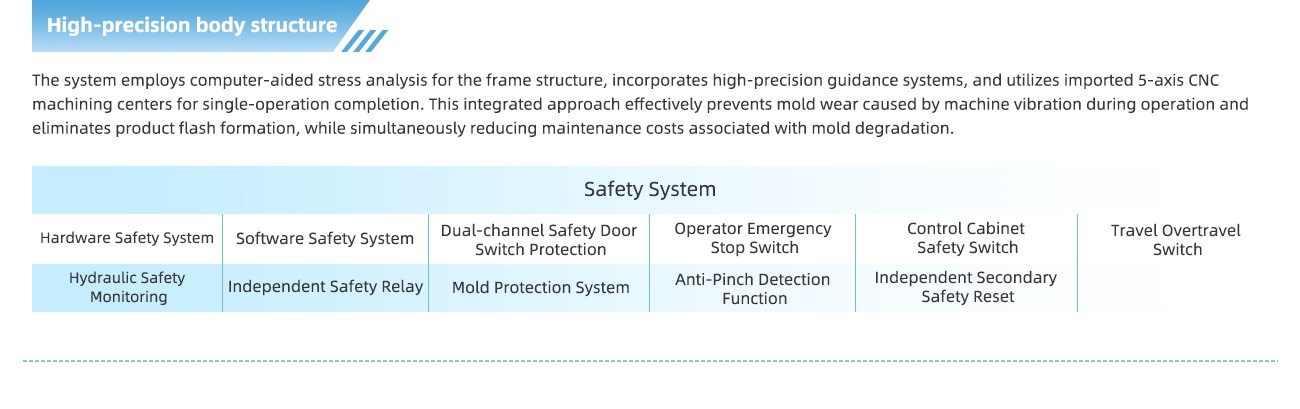

Machine structure: Designed using Dassault design software, ensuring stable stress distribution and no deformation even after long-term use.

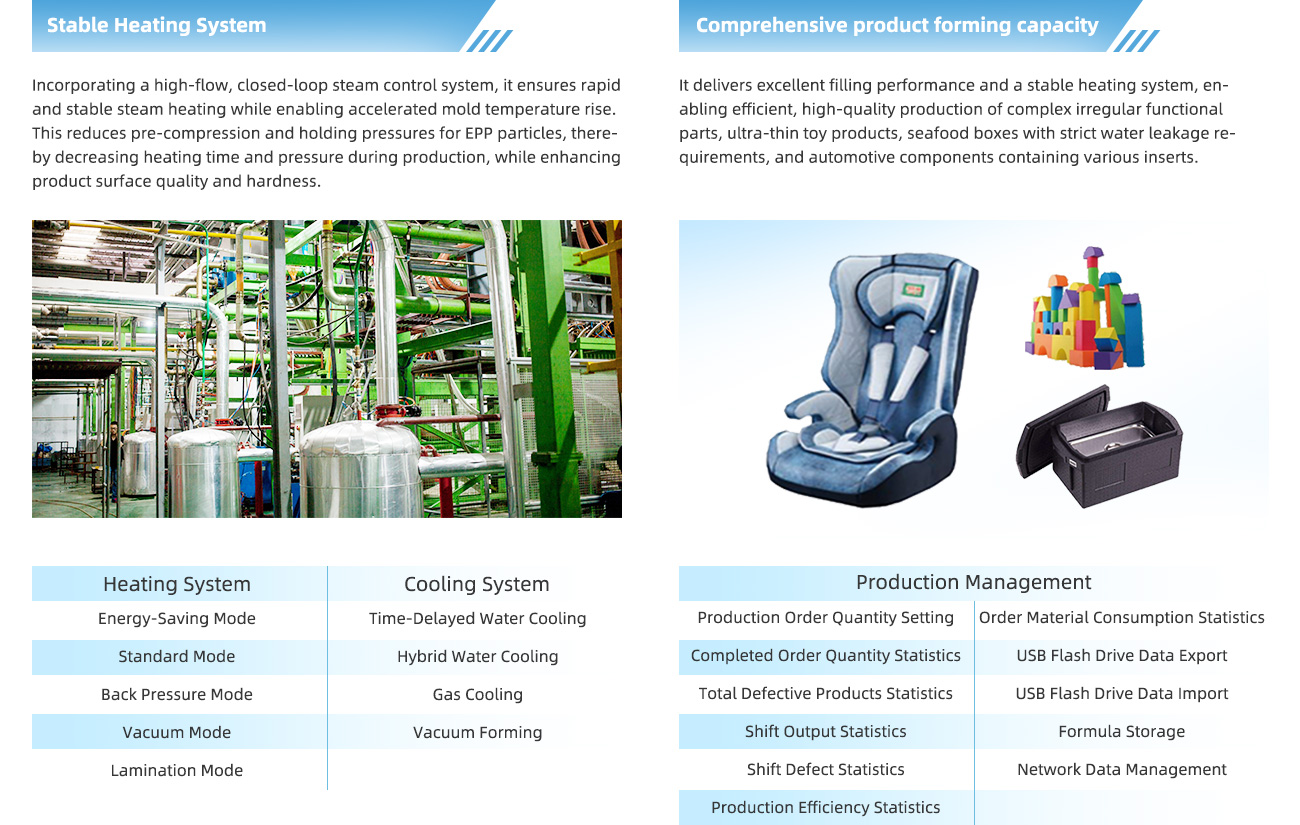

Steam chamber: High-strength steam chamber guarantees stability during heating, aluminum coated with outside thermal insulation.

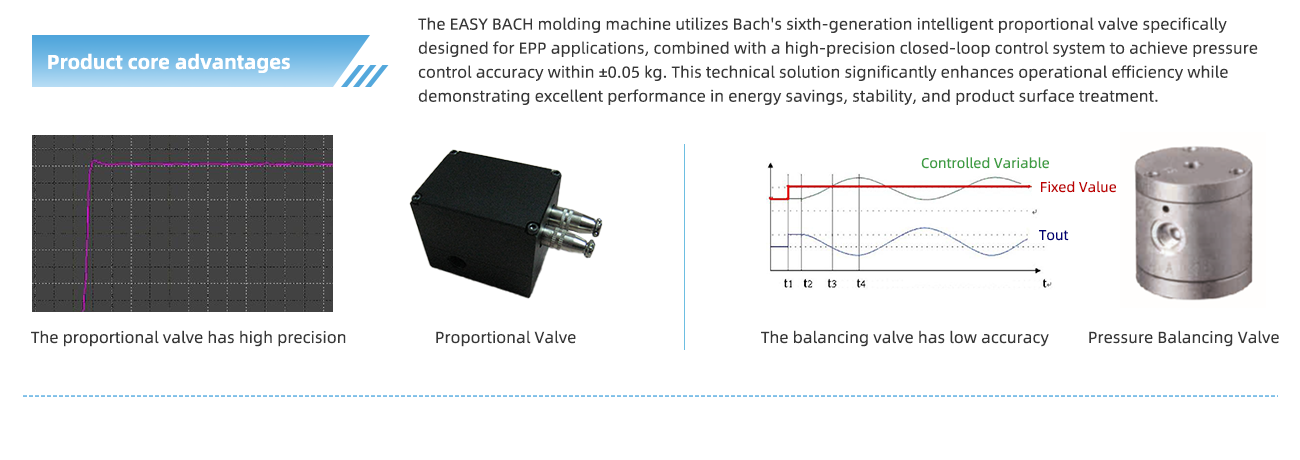

Precision Assurance: The only self-developed high-precision PID proportional valve in China enables precise media control with an accuracy of 0.05 bar.

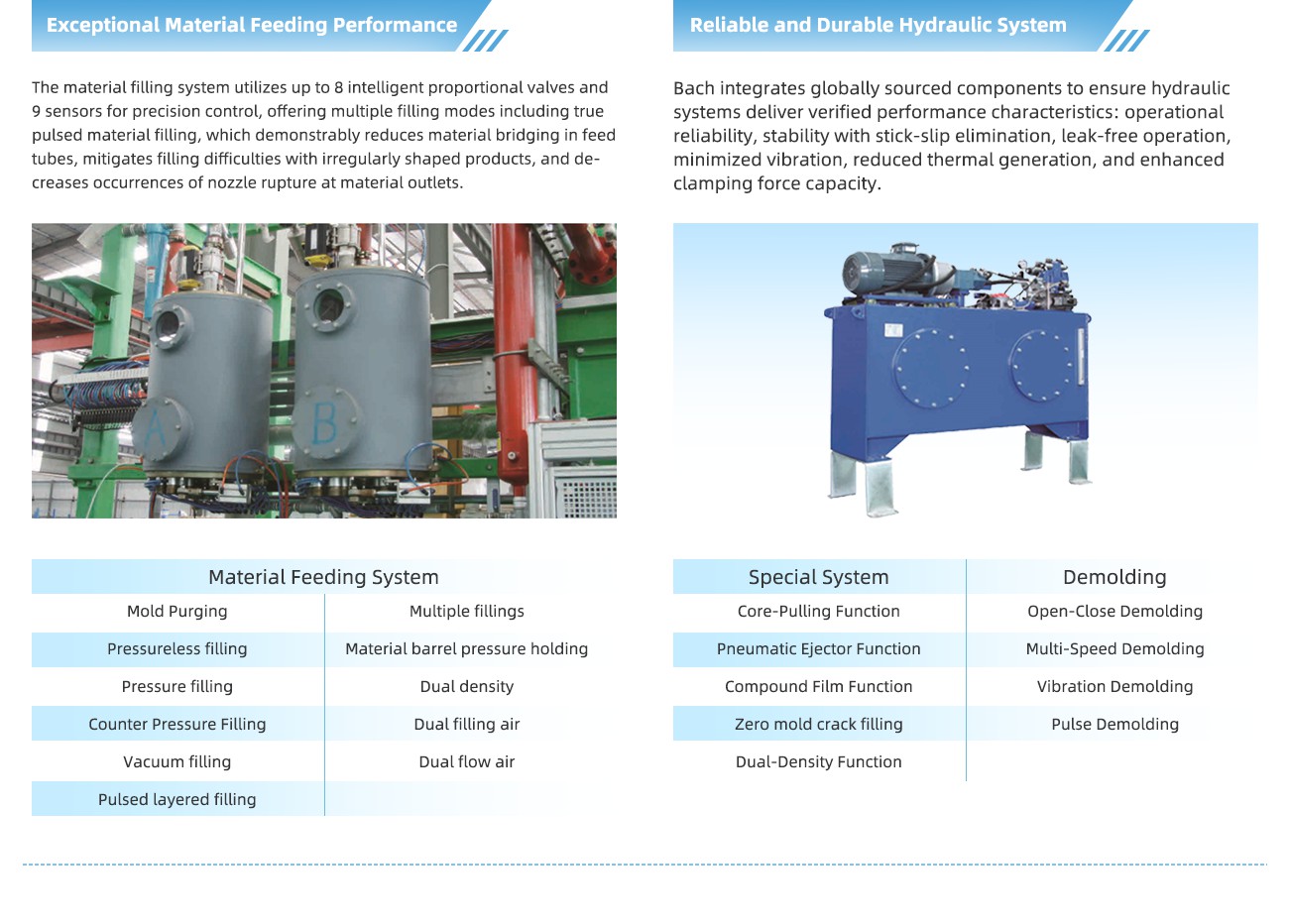

Hydraulic system: Easybach self-developed hydraulic system features high clamping force, low heat generation and exceptional durability. It is currently licensed for use by Kurtz (China).
Filling: Excellent material filling performance, controlled by up to 8 PID proportional valves and 9 sensors to ensure fully filled, high-quality moulded parts.
| Category | Part | Equipment Model | 1422 |
| Power Consumption | Electrical | Power Supply | 380V |
| Total Power | 7kW | ||
| Basic Parameters of Mechanical Part | Frame | Maximum Forming Pressure | 5 Bar |
| Machine Overall Dimensions (mm) L*W*H | 6760*4100*5500 | ||
| Machine Weight (kg) | 18000 | ||
| Steam Chamber | √ | ||
| Frame Feet | √ | ||
| Valve Brands | ESG/Sheng Hans | ||
| Mold | Maximum External Dimensions of (Three-piece) Mold Plate (mm) | 1400*2200 | |
| Maximum Clamping Force (KN) | 1746.5 | ||
| Maximum Forming Size (mm) | 1356*2156 | ||
| Maximum Mold Opening Size (mm) | 1820 | ||
| Minimum Mold Closing Size (mm) | 415 | ||
| Rapid Mold Opening Speed (cm/s) | 17.2 | ||
| Rapid Mold Closing Speed (cm/s) | 10.8 | ||
| Rear (Demolding) Window Size (mm) | 1300*2100 | ||
| Maximum Demolding Force (KN) | 180 (Hydraulic) | ||
| Demolding Method (Fixed/Movable Mold Ejection) | Selectable | ||
| Hopper | Hopper Pressurization Function | √ | |
| Number of Hopper | 2 | ||
| Hopper Type: Horizontal or Vertical | Vertical | ||
| Hopper Volume (L) | 220 | ||
| Number of Material Discharge Ports | 30 | ||
| Outer Diameter of Material Discharge Port | DN25 | ||
| Hopper Configuration | EM Pressure Filling System | ||
| Hopper Level Detection Function | × | ||
| Hopper Quick Connector | √ | ||
| Hopper Refeeding Method | Central Pumping | ||
| Hydraulics | Hydraulic Pump Type | Dual Vane Pump | |
| Hydraulic Oil Type | No. 46 Anti-Wear Hydraulic Oil | ||
| Oil Cylinder Volume (L) | 300L | ||
| Hydraulic Cylinder Stroke (mm) | 1450/640 | ||
| Hydraulic Cylinder Inner Diameter (mm) | 90/150 | ||
| Motor Power of Hydraulic Station | 5.5kW | ||
| Number of Clamping Cylinders | 6 | ||
| Pipe Interface | Steam Inlet Diameter | DN150 | |
| Cooling Water Inlet Diameter | DN65 | ||
| Compressed Air Inlet Diameter | DN80 | ||
| Drain Pipe Diameter | DN100 | ||
| High-Pressure Air Inlet Diameter | DN20 | ||
| Basic Parameters of Control Part | Compressed Air System | High-Pressure Air, Pressure Range (Mpa) | 0.5-0.6 |
| Low-Pressure Air, Pressure Range (Mpa) | 0.4-0.5 | ||
| Steam System | Pressure Range (Mpa) | 0.4-0.5 | |
| Control Method of Steam Valve | Proportional Valve | ||
| Pressure Reducing Valve | × | ||
| Cooling System | Cooling Water Pressure Range (Mpa) | 0.4-0.5 | |
| Vacuum System | Optional | ||
| Control System | Number of Filling Methods | 4 | |
| PLC Brand | Xinjie | ||
| Memory Card | × | ||
| Vacuum System | Independent or Central Vacuum | Optional | |
| Safety Control System | Safety Control Systems for Operators | Safety Door, Emergency Stop Button | |
| Special Process (Function) Features | Core Pulling Function | Optional | |
| One-time Molding (Blister) Function | √ | ||
| Others | Ethernet | ||
| Equipment Advantages | Steam Pressure Control Method | High-Precision Digital Proportional Valve | |
| Steam Pressure Control Precision | 0.05-0.1 | ||
| Demolding Air Control Method | High-Precision Digital Proportional Valve | ||
| Demolding Air Control Precision | 0.02-0.05 | ||
| Hopper Pressure Control Method | High-Precision Digital Proportional Valve | ||
| Hopper Pressure Control Precision | 0.02-0.05 | ||
| Guide Pillar | High-Frequency Hardened, Hard Chromium Plated | ||
| Guide Bearing | Tin Bronze Graphite Bearing + Self-Lubricating System | ||
