-Ultra-Low Energy Consumption: Minimum steam consumption of 13kg/mold.

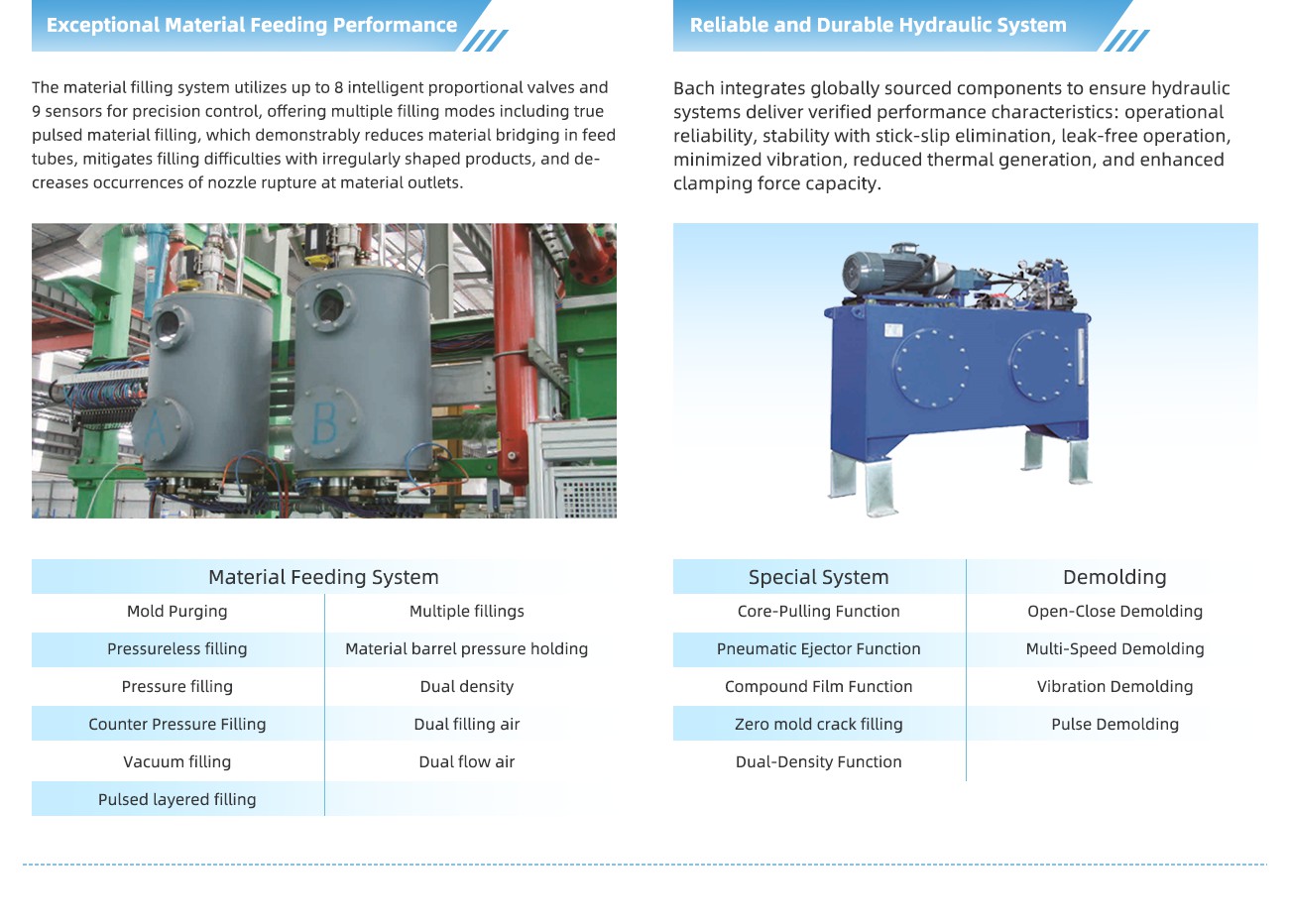

-Outstanding Feeding Performance: Fully fills products of various thicknesses.
-Ultimate Safety Protection: Ensures a high level of operational safety.
-Reliable Hydraulic System: Filling seam accuracy is less than 0.3mm.

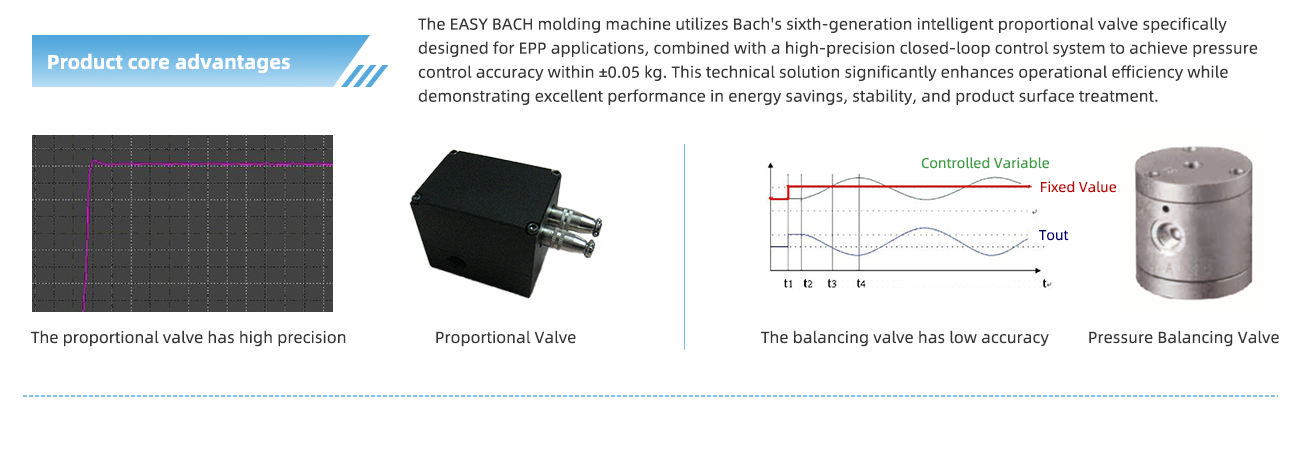

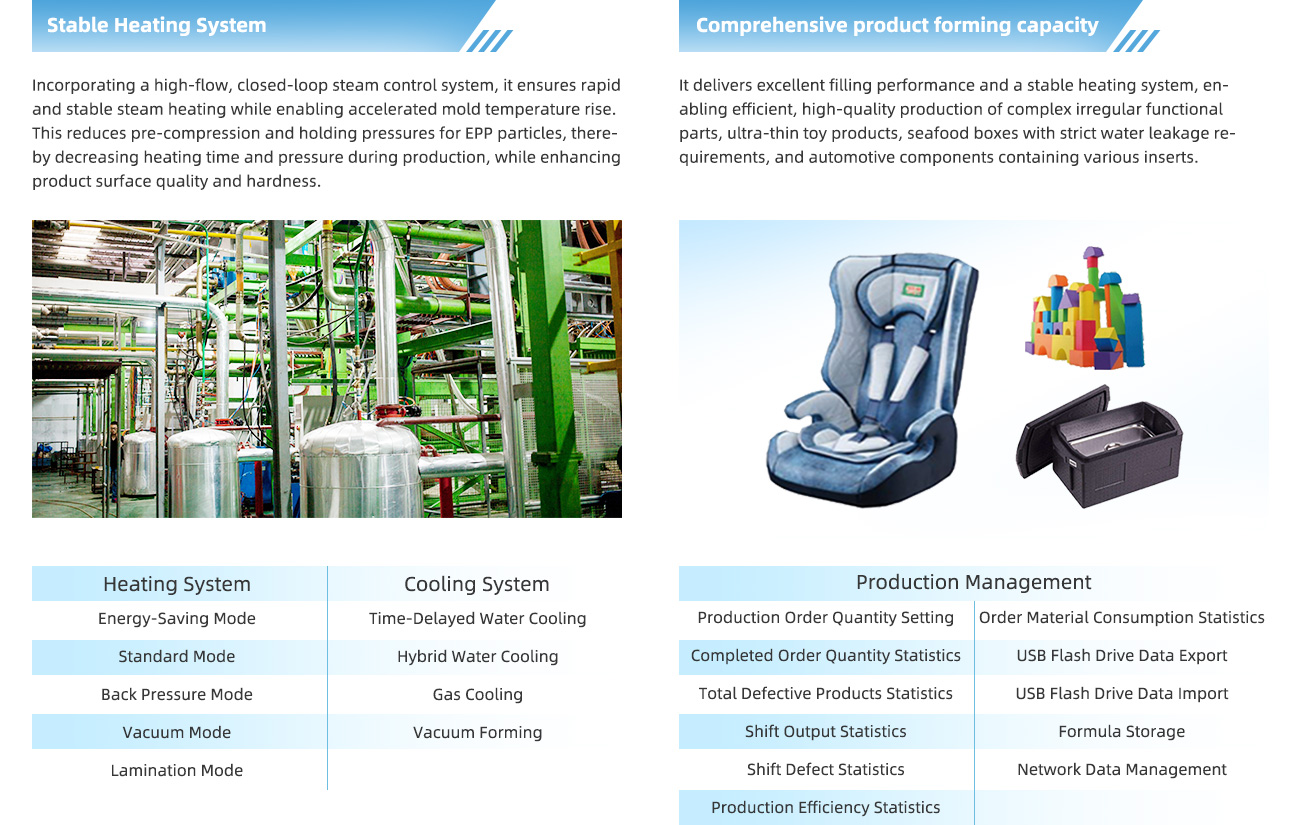

-Stable Heating System: Steam pressure deviation is less than 0.05 bar.
-Dual-Station Design: Doubles production efficiency.

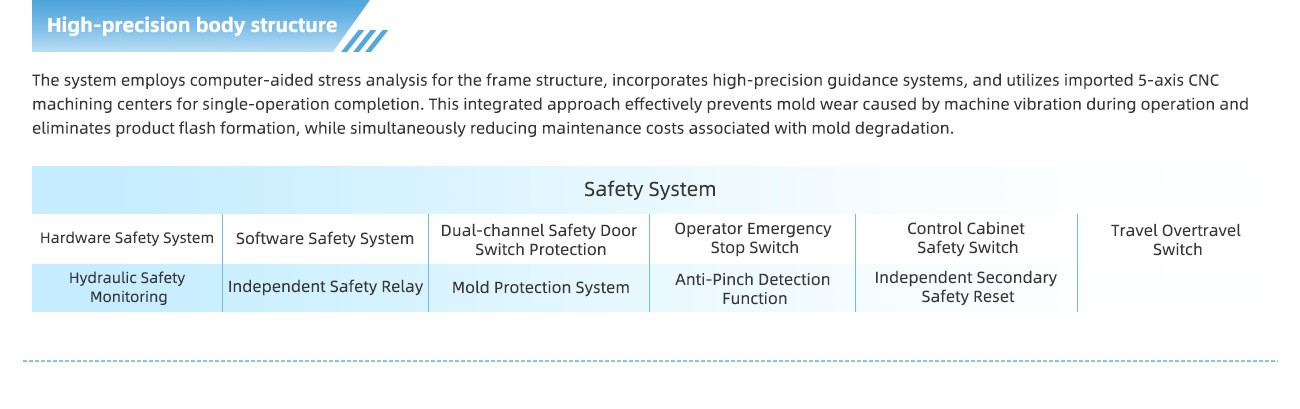

-High-Precision Machine Structure: Tolerance is 0.03mm.
-Perfect Adaptation for Insert Molds: Compatible with a variety of insert mold designs.
-Simultaneous Production of Four Different Densities and Colors: Enables multi-variety production in one cycle.
-Efficient Production Cycle: Fastest cycle time of just 60 seconds per mold.
| Category | Part | Name | Forming Machine | |
| Equipment Model | Model 1214 | Model 1418 | ||
| Power Consumption | Electrical | Power Supply | 380V | 380V |
| Total Power | 7.75kW | 7.75kW | ||
| Basic Parameters of Mechanical Part | Frame | Maximum Forming Pressure | 5 kg | 5 kg |
| Machine Overall Dimensions (mm) L*W*H | 5383*3510*4430 1400*1600*（600/800/900/1000） 1600*2500*（600/800/900/1000） | 5383*3919*4630 1400*1600*（600/800/900/1000） 1600*2500*（600/800/900/1000） | ||
| Machine Weight (kg) | 11000 | 14500 | ||
| With Water Tank (Steam Chamber) or Not | With Water Tank | |||
| Whether the Frame Has Its Own Feet | With Its Own Feet | |||
| List All Valve Brands | ESG/Sheng Hans | |||
| Mold | Maximum External Dimensions of (Three-piece) Mold Plate (mm) | 1200*1400 | 1400*1800 | |
| Maximum External Dimensions of (Integral) Mold (mm) | 1520*1620 | 1620*2020 | ||
| Maximum Clamping Force (KN) | 1165 | 1165 | ||
| Maximum Forming Size (mm) | 1156*1356 | 1356*1756 | ||
| Maximum Mold Opening Size (mm) | 1820 | 1820 | ||
| Minimum Mold Closing Size (mm) | 415 | 415 | ||
| Rapid Mold Opening Speed (cm/s) | 26.8 | |||
| Rapid Mold Closing Speed (cm/s) | 13.6 | |||
| Rear (Demolding) Window Size (mm) | 1100*1300 | 1300*1700 | ||
| Maximum Demolding Force (KN) | 180 (Hydraulic) | |||
| Demolding Method (Fixed/Movable Mold Ejection) | Selectable for Fixed or Movable Mold | |||
| Barrel | Whether the Barrel Has Pressurization Function | Yes | ||
| Number of Barrels | 2 | |||
| Barrel Type: Horizontal or Vertical | Vertical | |||
| Barrel Volume (L) | 150 | 220 | ||
| Number of Raw Material Discharge Ports | 24 | |||
| Outer Diameter of Raw Material Discharge Port | DN25 | |||
| Barrel Configuration | EM Pressure Feeding System | |||
| Barrel Level Detection Function | \ | |||
| Barrel Quick Connector | Yes | |||
| Barrel Refueling Method | Central Pumping | |||
| Hydraulics | Hydraulic Pump Type | Dual Vane Pump | ||
| Hydraulic Oil Type | No. 46 Anti-Wear Hydraulic Oil | |||
| Oil Cylinder Volume (L) | 300L | |||
| Hydraulic Cylinder Stroke (mm) | 1450/640 | |||
| Hydraulic Cylinder Inner Diameter (mm) | 90/150 | 90/150 | ||
| Motor Power of Hydraulic Station | 5.5kW | |||
| Number of Clamping Cylinders | 4 | |||
| Pipe Interface | Steam Inlet Diameter | DN125 | ||
| Cooling Water Inlet Diameter | DN65 | |||
| Compressed Air Inlet Diameter | DN80 | |||
| Drain Pipe Diameter | DN100 | |||
| High-Pressure Air Inlet Diameter | DN20 | |||
| Basic Parameters of Control Part | Compressed Air System | High-Pressure Air, Pressure Range (Mpa) and Control Method | 0.5-0.6 | |
| Low-Pressure Air, Pressure Range (Mpa) and Control Method | 0.4-0.5 | |||
| Steam System | Pressure Range (Mpa) | 0.4-0.5 | 0.4-0.5 | |
| Control Method of Steam Valve | Proportional Valve | |||
| With Pressure Reducing Valve or Not | No | |||
| Cooling System | Cooling Water Pressure Range (Mpa) | 0.4-0.5 | ||
| With Vacuum System or Not | Optional | |||
| Control System | Number of Feeding Methods | 4 | ||
| PLC Brand | Xinjie | |||
| With Memory Card or Not | No | |||
| Vacuum System | With Built-in Vacuum or Central Vacuum | Optional Central Vacuum or Built-in Vacuum | ||
| Safety Control System | Safety Control Systems for Operators (e.g., safety door, anti-pinch, anti-pressure technology) | Safety Door, Emergency Stop Button | ||
| Special Process (Function) Features | With Core Pulling Function or Not | Optional | ||
| With One-time Molding (Blister) Function or Not | Yes | |||
| Others | Ethernet | |||
| Equipment Advantages | Steam Pressure Control Method | High-Precision Digital Proportional Valve | ||
| Steam Pressure Control Precision | 0.05-0.1 | |||
| Demolding Air Control Method | High-Precision Digital Proportional Valve | |||
| Demolding Air Control Precision | 0.02-0.05 | |||
| Barrel Pressure Control Method | High-Precision Digital Proportional Valve | |||
| Barrel Pressure Control Precision | 0.02-0.05 | |||
| Guide Pillar | High-Frequency Hardened, Hard Chromium Plated | |||
| Guide Bearing | Tin Bronze Graphite Bearing + Self-Lubricating System | |||
