-Platform Structure Design: Suitable for a variety of production scenarios.-Space-Saving Platform Structure: Facilitates easy integration with existing production lines.

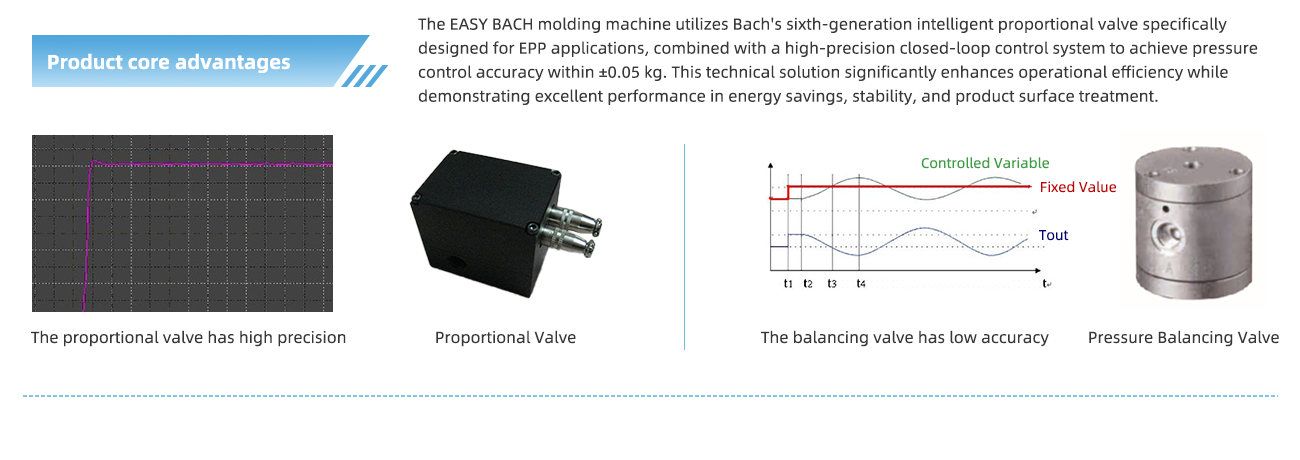

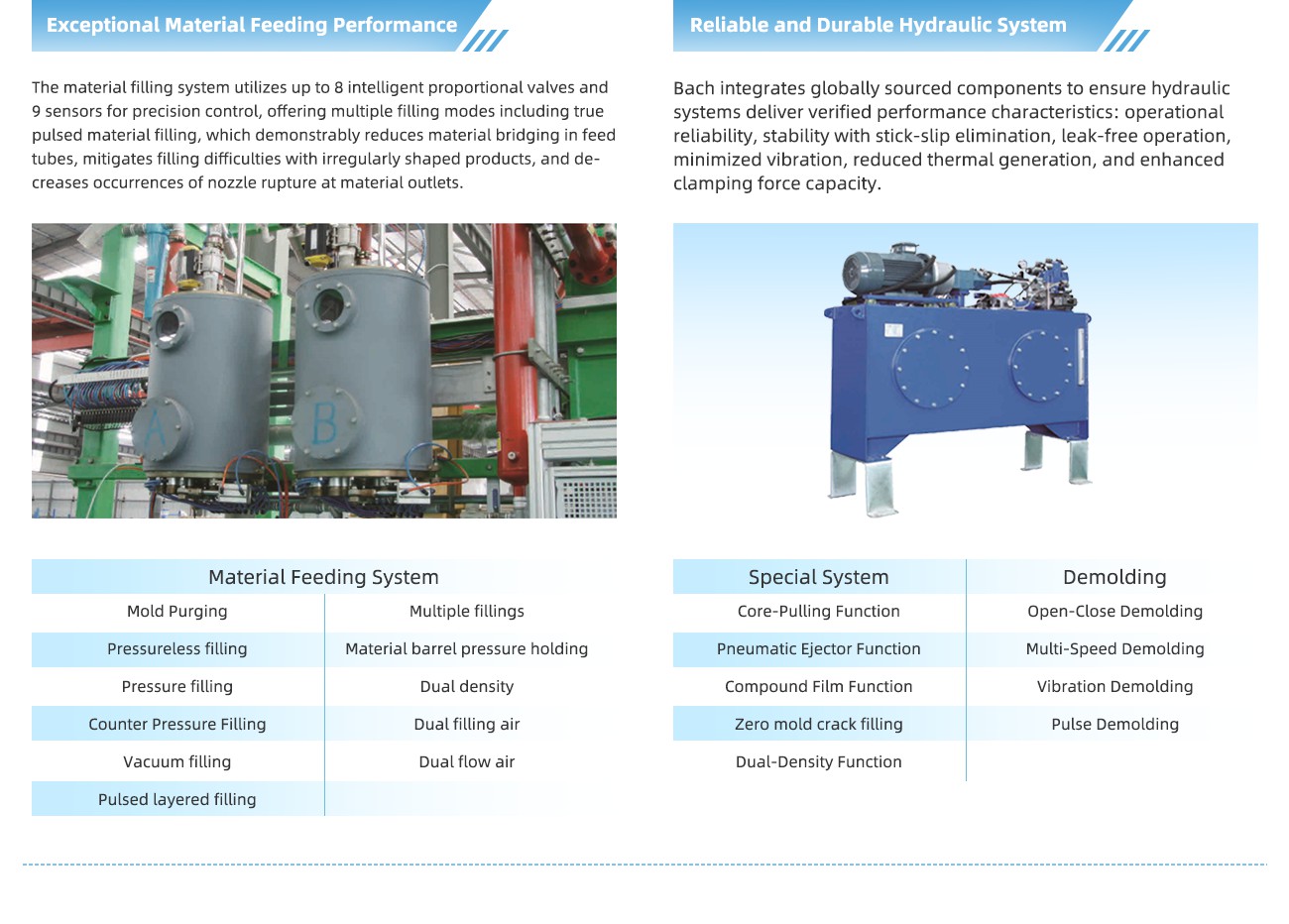

-Advanced Material Feeding Performance: Uses 8 intelligent proportional valves and 9 sensors for precise control, ensuring optimal material delivery and minimizing issues like material bridging and nozzle breakage.

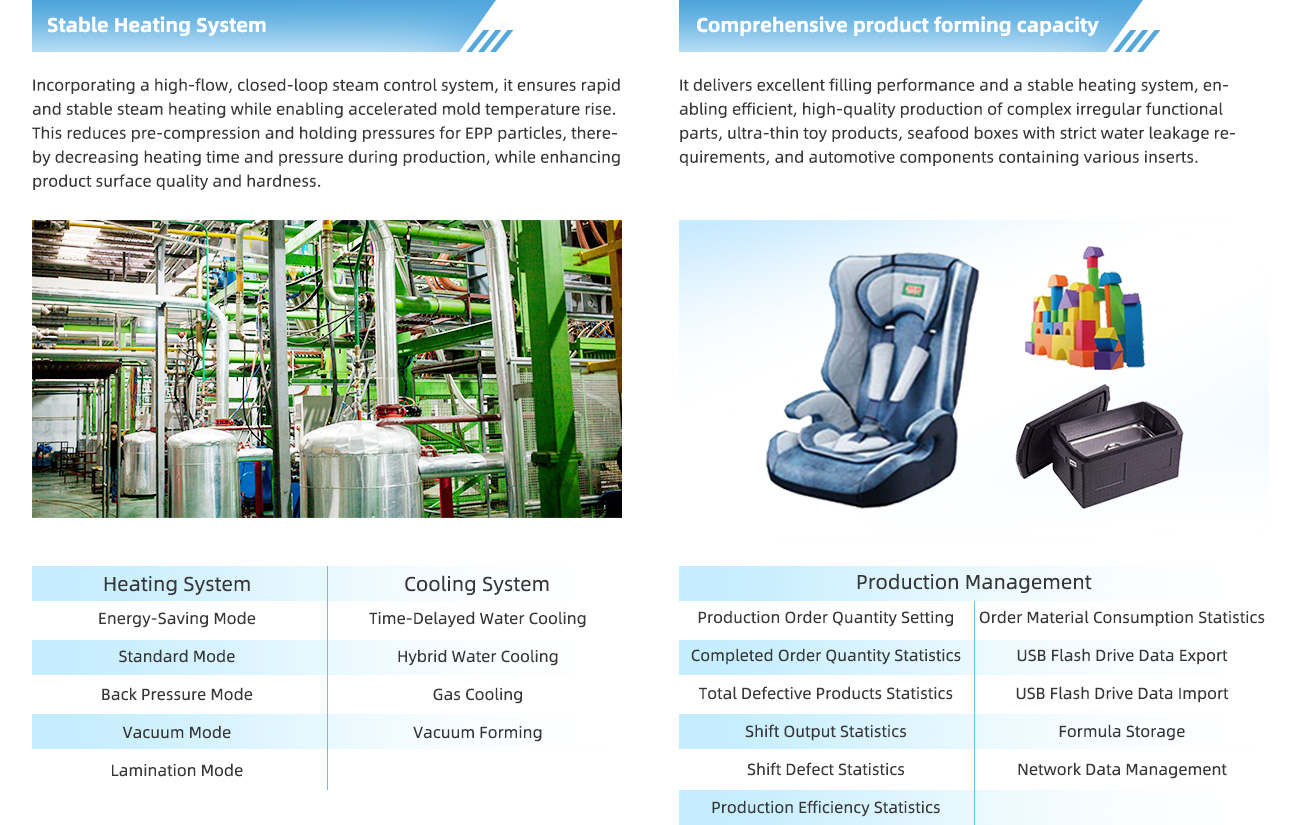

-High-Speed Feeding, Quick Heating, and Cooling System: Increases productivity by 30%-50%, while its energy-saving features and stable operation contribute to long-term cost savings.
-Advanced Safety Mechanism: Further enhances reliability, making it an ideal solution for high-output, high-quality production.
| Item | EPS1214 | EPS1618 | EPS2022 | EPS2224 | Unit | Remarks |
| Maximum Mold Installation Size | 1200*1400 | 1600*1800 | 2000*2200 | 2200*2400 | mm | |
| Maximum Product Height | 350/700 | 350/700 | 700 | 700 | mm | |
| Pressurized Feeding Control | High-precision Proportional Valve | High-precision Proportional Valve | High-precision Proportional Valve | High-precision Proportional Valve | ||
| Pressurized Feeding Control Precision | 0.1 | 0.1 | 0.1 | 0.1 | bar | |
| Steam Pressure Control Method | High-precision Proportional Valve | High-precision Proportional Valve | High-precision Proportional Valve | High-precision Proportional Valve | ||
| Steam Pressure Control Precision | 0.1 | 0.1 | 0.1 | 0.1 | bar | |
| Barrel Pressure Control Method | High-precision Proportional Valve | High-precision Proportional Valve | High-precision Proportional Valve | High-precision Proportional Valve | ||
| Barrel Pressure Control Precision | 0.05-0.1 | 0.05-0.1 | 0.05-0.1 | 0.05-0.1 | bar | |
| Feeding Air Control Method | High-precision Proportional Valve | High-precision Proportional Valve | High-precision Proportional Valve | High-precision Proportional Valve | ||
| Feeding Air Control Precision | 0.05-0.1 | 0.05-0.1 | 0.05-0.1 | 0.05-0.1 | bar | |
| Number of Barrel Configurations | 2 | 2 | 2 | 2 | piece(s) | |
| Demolding Frame | Front-mounted | Front-mounted | Front-mounted | Front-mounted | ||
| Demolding Air Control Method | High-precision Proportional Valve | High-precision Proportional Valve | High-precision Proportional Valve | High-precision Proportional Valve | ||
| Demolding Air Pressure Control Precision | 0.1 | 0.1 | 0.1 | 0.1 | bar | |
| Stroke Measurement | Digital Measurement | Digital Measurement | Digital Measurement | Digital Measurement | ||
| Stroke Measurement Precision | <0.3 | <0.3 | <0.3 | <0.3 | mm | |
| Hydraulic System | Multiple Pumps | Multiple Pumps | Multiple Pumps | Multiple Pumps | ||
| Hydraulic System Power | 7.5 | 7.5 | 11 | 11 | KW | |
| Maximum Mold Opening/Closing Speed | 220 | 220 | 220 | 220 | mm/S | |
| Maximum Mold Opening | 1540/2400 | 1540/2400 | 2400 | 2400 | mm | |
| Non-powered Vacuum System | Yes | Yes | Yes | Yes | ||
| PLC | XD32 | XD32 | XD32 | XD32 | High-speed Industrial Computer | Operation cycle 2ms |
| Display | Xinjie | Xinjie | Xinjie | Xinjie | ||
| Guide Pillar | High-frequency Hardened, Chromium Plated | High-frequency Hardened, Chromium Plated | High-frequency Hardened, Chromium Plated | High-frequency Hardened, Chromium Plated | ||
| Guide Bushing | Graphite Bearing + Self-lubricating System | Graphite Bearing + Self-lubricating System | Graphite Bearing + Self-lubricating System | Graphite Bearing + Self-lubricating System | ||
| Steam Pressure Requirement | >2 | >2 | >2 | >2 | bar | |
| Cooling Water Pressure Requirement | >4 | >4 | >4 | >4 | bar | |
| Cooling Water Temperature Requirement | 50-55 | 50-55 | 50-55 | 50-55 | ℃ | |
| High-pressure Air | >6 | >6 | >6 | >6 | bar | |
| Low-pressure Air | >4 | >4 | >4 | >4 | bar |
