EPS Automatic Molding Machine

-Floor-Type Strong and Stable Structure: Solves the industry-wide issue of "vibration damaging precision."

-Optimized Steam Pipeline and Control System: Reduces cycle time to under 60 seconds, significantly improving output per unit time.

-Equipped with High-Performance Motors: Precision components and mechanical structure ensure smooth production, reducing downtime. Multi-machine matrix supports "multi-category orders" without the need to change equipment.

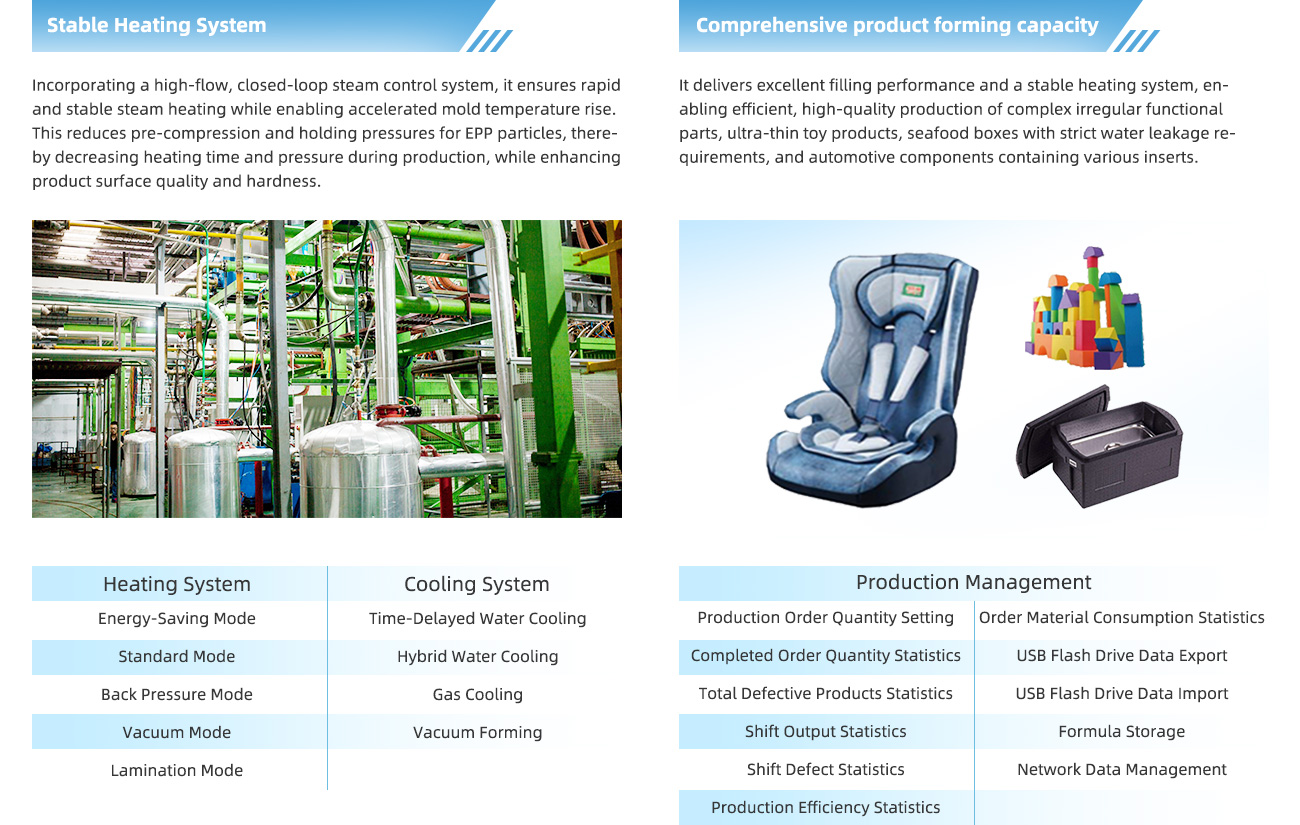

-Modular Steam Box and Multi-Channel Independent Steam Injection System: Ensures even heating of products, preventing localized "underheating" or "overcooking."

-Ultra-Low Steam Consumption of 13kg/mold: 20%+ cost savings compared to the industry average.

-Advanced Intelligent Energy Management and Vacuum Cooling System: Significantly reduces energy consumption.

-Stable Process Parameters: Ensures stable product dimensions, low shrinkage rate, minimal deformation, and precise tolerance control.

-Full Body Anti-Corrosion Treatment: Extends machine lifespan by 8-10 years compared to standard machines.


  • Details
  • Feature
  • Advantage
ItemEPS1214EPS1618EPS2022EPS2224UnitRemarks
Maximum Mold Installation Size1200*14001600*18002000*22002200*2400mm
Maximum Product Height350/700350/700700700mm
Pressurized Feeding ControlHigh-precision Proportional ValveHigh-precision Proportional ValveHigh-precision Proportional ValveHigh-precision Proportional Valve

Pressurized Feeding Control Precision0.10.10.10.1bar
Steam Pressure Control MethodHigh-precision Proportional ValveHigh-precision Proportional ValveHigh-precision Proportional ValveHigh-precision Proportional Valve

Steam Pressure Control Precision0.10.10.10.1bar
Barrel Pressure Control MethodHigh-precision Proportional ValveHigh-precision Proportional ValveHigh-precision Proportional ValveHigh-precision Proportional Valve

Barrel Pressure Control Precision0.05-0.10.05-0.10.05-0.10.05-0.1bar
Feeding Air Control MethodHigh-precision Proportional ValveHigh-precision Proportional ValveHigh-precision Proportional ValveHigh-precision Proportional Valve

Feeding Air Control Precision0.05-0.10.05-0.10.05-0.10.05-0.1bar
Number of Barrel Configurations2222piece(s)
Demolding FrameFront-mountedFront-mountedFront-mountedFront-mounted

Demolding Air Control MethodHigh-precision Proportional ValveHigh-precision Proportional ValveHigh-precision Proportional ValveHigh-precision Proportional Valve

Demolding Air Pressure Control Precision0.10.10.10.1bar
Stroke MeasurementDigital MeasurementDigital MeasurementDigital MeasurementDigital Measurement

Stroke Measurement Precision<0.3<0.3<0.3<0.3mm

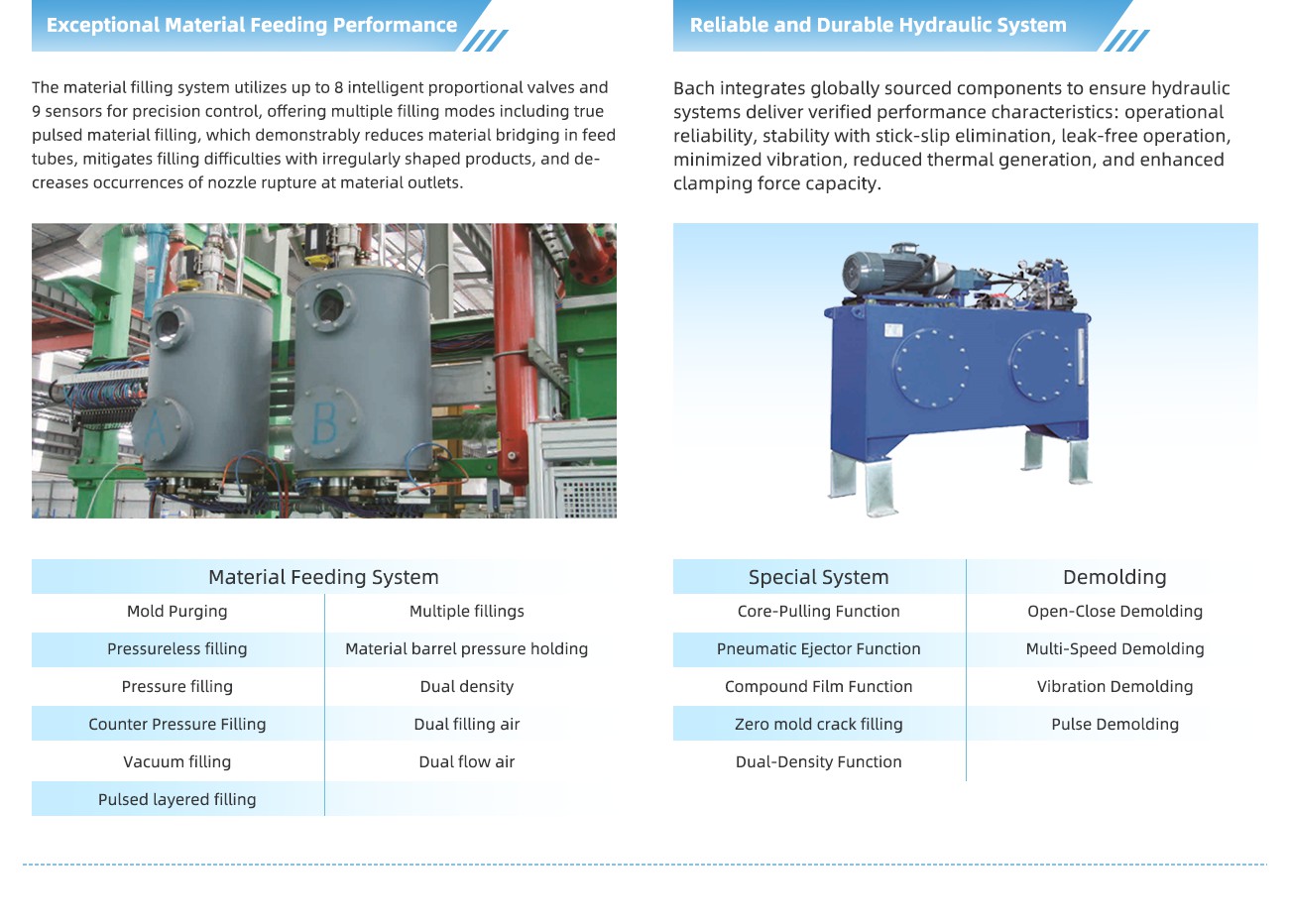

Hydraulic SystemMultiple PumpsMultiple PumpsMultiple PumpsMultiple Pumps

Hydraulic System Power7.57.51111KW
Maximum Mold Opening/Closing Speed220220220220mm/S
Maximum Mold Opening1540/24001540/240024002400mm
Non-powered Vacuum SystemYesYesYesYes

PLCXD32XD32XD32XD32High-speed Industrial ComputerOperation cycle 2ms
DisplayXinjieXinjieXinjieXinjie

Guide PillarHigh-frequency Hardened, Chromium PlatedHigh-frequency Hardened, Chromium PlatedHigh-frequency Hardened, Chromium PlatedHigh-frequency Hardened, Chromium Plated

Guide BushingGraphite Bearing + Self-lubricating SystemGraphite Bearing + Self-lubricating SystemGraphite Bearing + Self-lubricating SystemGraphite Bearing + Self-lubricating System

Steam Pressure Requirement>2>2>2>2bar
Cooling Water Pressure Requirement>4>4>4>4bar
Cooling Water Temperature Requirement50-5550-5550-5550-55
High-pressure Air>6>6>6>6bar
Low-pressure Air>4>4>4>4bar
