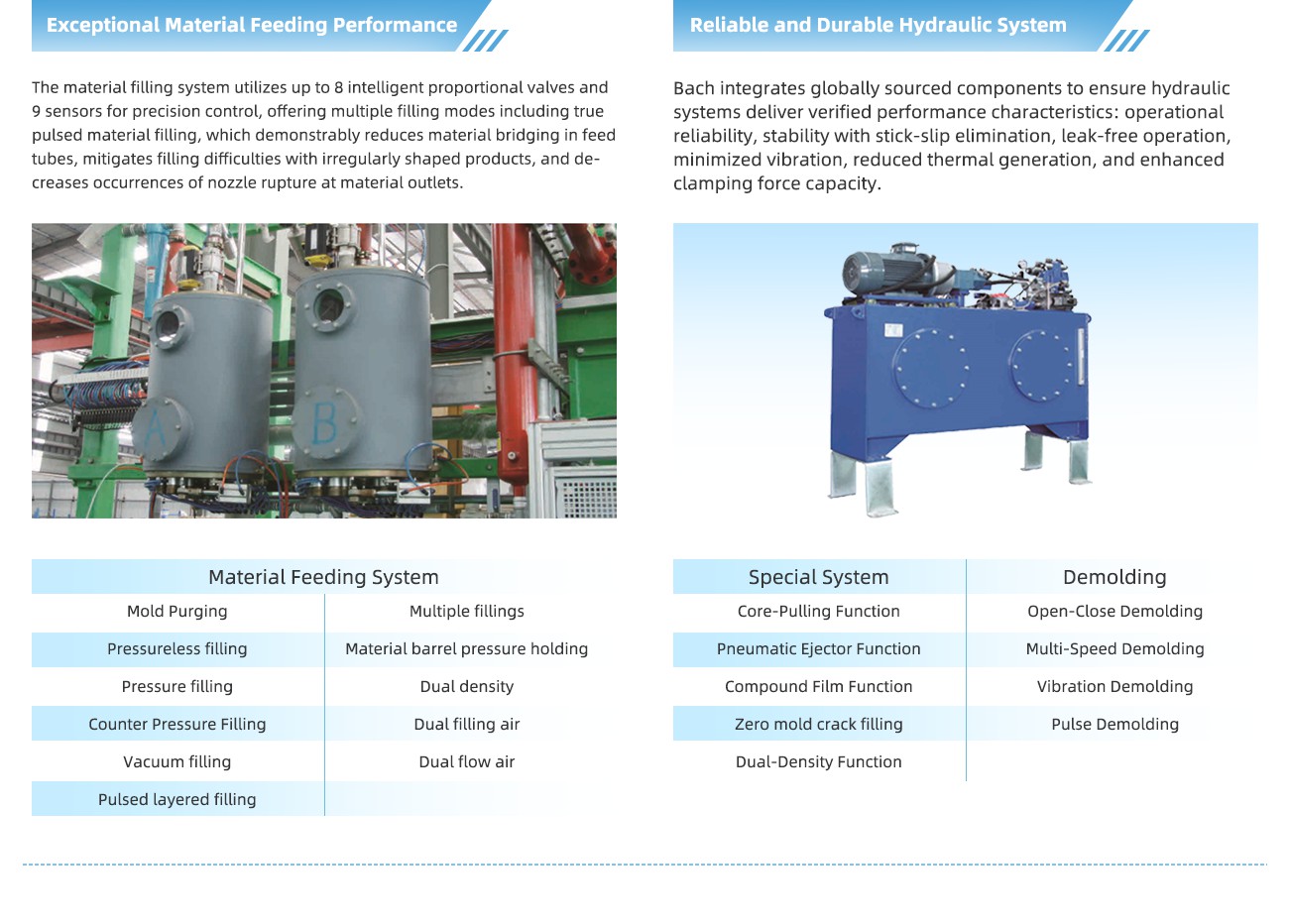

Engineered for large ETPU beads, the servo pulse feeding system delivers high filling precision and uniform density for perfect material injection
Equipped with an in-house developed heavy-duty hydraulic station, providing clamping forces far exceeding conventional machines to prevent flash or overflow during high-pressure foaming

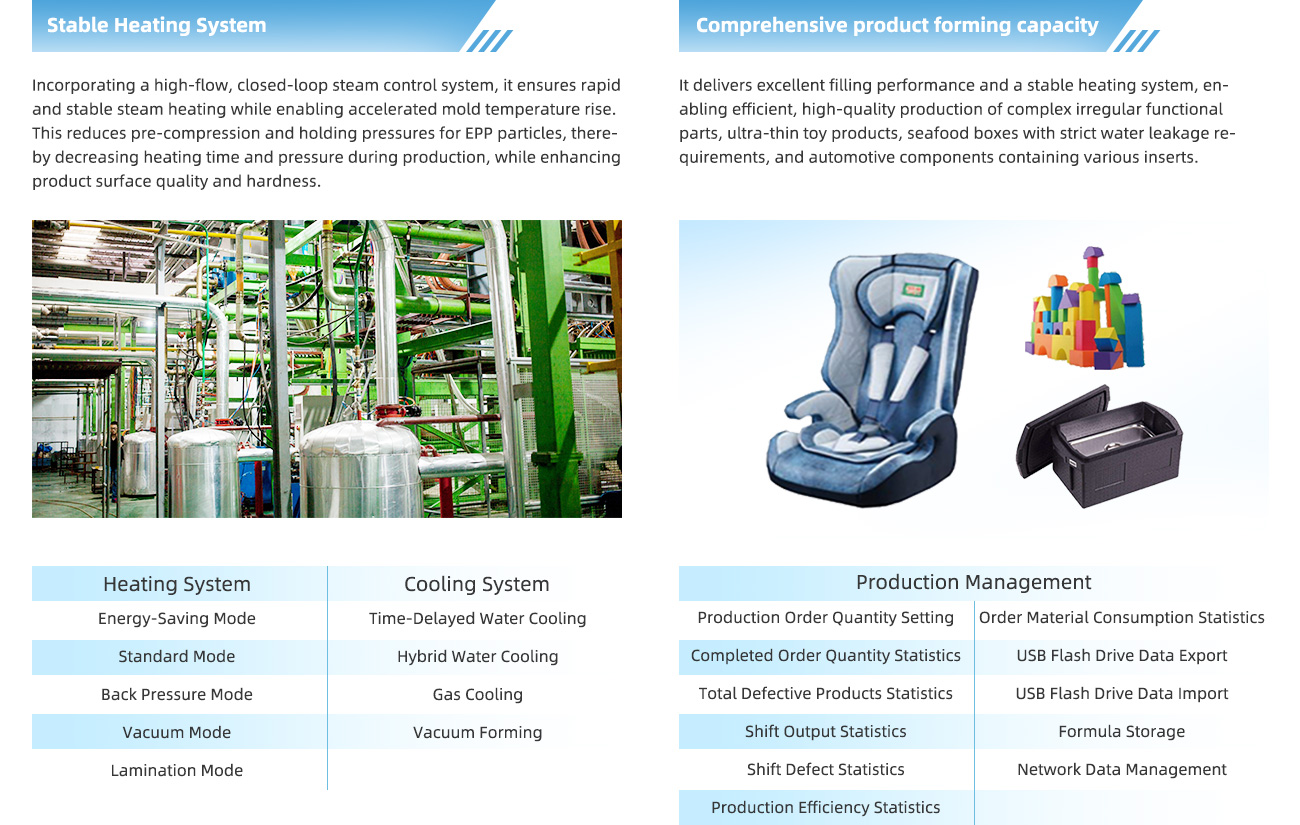

Integrates 0.05 bar precision steam control with an efficient central vacuum system to overcome process challenges like deep steam penetration and slow cooling in thick or complex parts
Stable microcellular foaming control ensures uniform density across ETPU molded parts, guaranteeing superior high resilience and minimal shrinkage
High-performance drivetrain paired with a full-body anti-corrosion structure ensures smooth operation under high-pressure heavy loads, substantially extending equipment service life
| Category | Part | Name | Molding Machine | |
| Equipment Model | Model 1214 | Model 1418 | ||
| Power Consumption | Electrical | Power Supply | 380V | 380V |
| Total Power | 7.75kW | 7.75kW | ||
| Basic Parameters of Mechanical Parts | Frame | Maximum Molding Pressure | 5 kg | 5 kg |
| Machine Overall Dimensions (mm) (LWH) | 5383*3510*4430 | 5383*3919*4630 | ||
| Machine Weight (kg) | 11,000 | 14,500 | ||
| With Steam Chamber or Not | √ | |||
| Whether the Frame Has Its Own Feet | √ | |||
| List All Valve Brands | ESG/Shenghansi | |||
| Mold | Maximum External Dimension of (Three-piece) Template (mm) | 1200*1400 | 1400*1800 | |
| Maximum External Dimension of (Integral) Mold (mm) | 1520*1620 | 1620*2020 | ||
| Maximum Clamping Force (KN) | 1165 | 1165 | ||
| Maximum Molding Size (mm) | 1156*1356 | 1356*1756 | ||
| Maximum Mold Opening Size (mm) | 1820 | 1820 | ||
| Minimum Mold Closing Size (mm) | 415 | 415 | ||
| Rapid Mold Opening Speed (cm/s) | 26.8 | |||
| Rapid Mold Closing Speed (cm/s) | 13.6 | |||
| Rear (Demolding) Window Size (mm) | 1100*1300 | 1300*1700 | ||
| Maximum Demolding Force (KN) | 180 (hydraulic) | |||
| Demolding Method (Fixed/Moving Mold Ejection) | Fixed or moving mold optional | |||
| Barrel | Whether the Hopper Has Pressurization Function | √ | ||
| Number of Hopper | 2 | |||
| Barrel Type (Horizontal or Vertical) | Vertical | |||
| Barrel Volume (L) | 150 | 180 | ||
| Number of Raw Material Outlets | 30 | |||
| Outer Diameter of Raw Material Outlet | DN25 | |||
| Hopper Configuration | EM Pressure Filling System | |||
| Hopper Level Detection Function | \ | |||
| Hopper Quick Connector | Yes | |||
| Hopper Refueling Method | Central pumping | |||
| Hydraulics | Hydraulic Pump Type | Dual vane pump | ||
| Hydraulic Oil Type | 46# anti-wear hydraulic oil | |||
| Oil Cylinder Volume (L) | 300 liters | |||
| Cylinder Stroke (mm) | 1450/640 | |||
| Cylinder Inner Diameter (mm) | 90/150 | 90/150 | ||
| Motor Power of Hydraulic Station | 5.5kW | |||
| Number of Clamping Cylinders | 4 | |||
| Pipe Interface | Steam Inlet Diameter | DN125 | ||
| Cooling Water Inlet Diameter | DN65 | |||
| Compressed Air Inlet Diameter | DN80 | |||
| Drain Pipe Diameter | DN100 | |||
| High-Pressure Air Inlet Diameter | DN20 | |||
| Basic Parameters of Control Part | Compressed Air System | High-Pressure Air, Pressure Range (Mpa) and Control Method | 0.5-0.6 | |
| Low-Pressure Air, Pressure Range (Mpa) and Control Method | 0.4-0.5 | |||
| Steam System | Pressure Range (Mpa) | 0.4-0.5 | 0.4-0.5 | |
| Control Method of Steam Valve | Proportional valve | |||
| With Pressure Reducing Valve or Not | No | |||
| Cooling System | Cooling Water Pressure Range (Mpa) | 0.4-0.5 | ||
| With Vacuum System or Not | Optional | |||
| Control System | Number of Filling Methods | 4 | ||
| PLC Brand | Xinjie | |||
| With Memory Card or Not | No | |||
| Vacuum System | With Built-in Vacuum or Central Vacuum | Optional central vacuum or built-in vacuum | ||

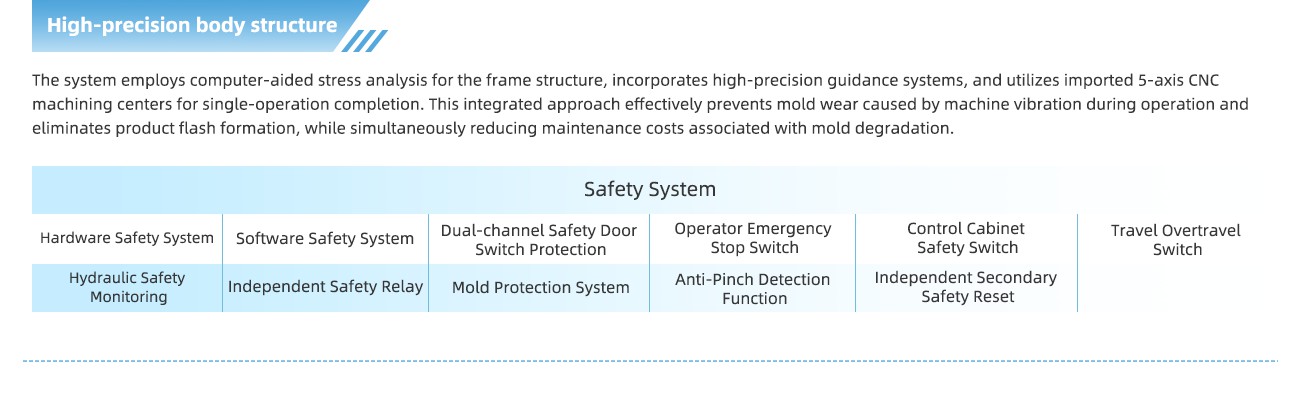

| Safety Control System | Safety Control Systems for Operators (e.g., Safety Door, Anti-Pinch, Anti-Pressure Technology) | Safety door, emergency stop button | ||
| Special Process (Function) Features | With Core Pulling Function or Not | Optional | ||
| With One-Time Overmolding (Blister) Function or Not | Yes | |||
| Others | Ethernet | |||

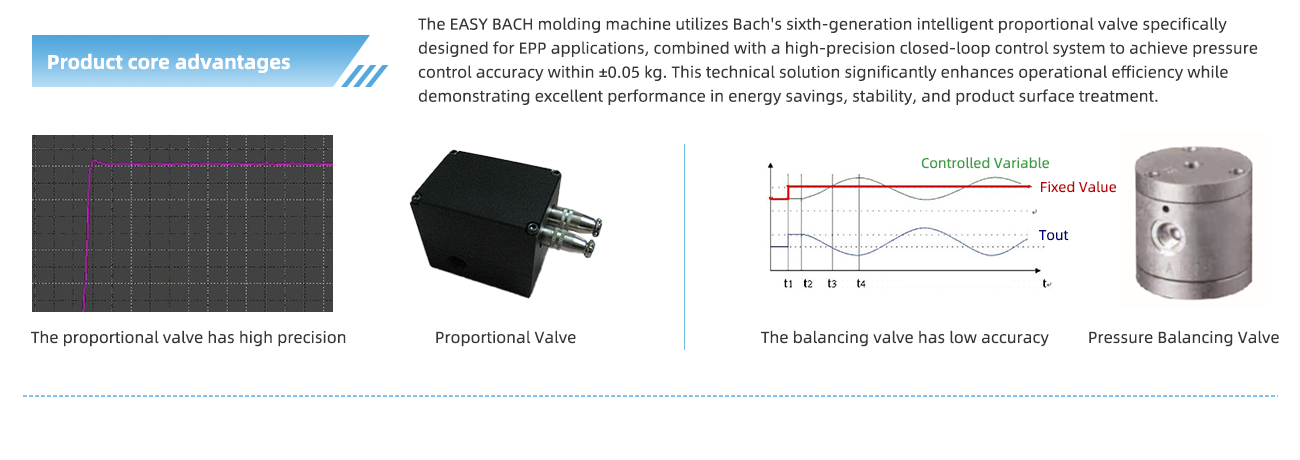

| Equipment Advantages | Steam Pressure Control Method | High-precision digital proportional valve | ||
| Steam Pressure Control Precision | 0.05-0.1 | |||
| Demolding Air Control Method | High-precision digital proportional valve | |||
| Demolding Air Control Precision | 0.02-0.05 | |||
| Barrel Pressure Control Method | High-precision digital proportional valve | |||
| Barrel Pressure Control Precision | 0.02-0.05 | |||
| Guide Post | High-frequency hardened, hard chrome plated | |||
| Guide Bearing | Tin bronze graphite bearing + self-lubricating system | |||
